DETECT, LOCATE, COMMUNICATE
Rapidly detect, locate and communicate with thousands of mobile phones
Rescue more people faster
Lowest size, weight & power consumptions means you fly further
Detection range verifiable at 30Km+
Qualified to the highest aviation standards
Simplest, lowest risk / cost integration
ARTEMIS – THE MOBILE
PHONE DETECTION &
LOCATION SYSTEM
(MPDLS)
ARTEMIS FEATURES
Airborne Qualified (DO160(G))
Entirely Designed & Produced In-house
Simple & Economical Integration
Mission System Plug-in (automatic cue EO/IR)
No Cellular Network Involvement Required
Two Geolocation Techniques
Two Low-Profile Antennas
Zero Ongoing Costs
ARTEMIS Simulator
Crewed/Uncrewed Options
Role-Fit Option
AIS & COSPAS SARSAT
SARLOC Built In
Software Defined/
Upgradable
Embedded Mapping & Geofencing
An ARTEMIS for any Airborne Platform
T-A4
No Compromises
Multi-Channel
2G – 3G – 4G – 5G
AIS – SARSAT – SARLOC
Smith Myers SDR x 4
35km Max Range
48 Cellular Bands
348 x 223 x 194mm
10.7kg (23.6lbs)
Carry on/off Role Fit Option

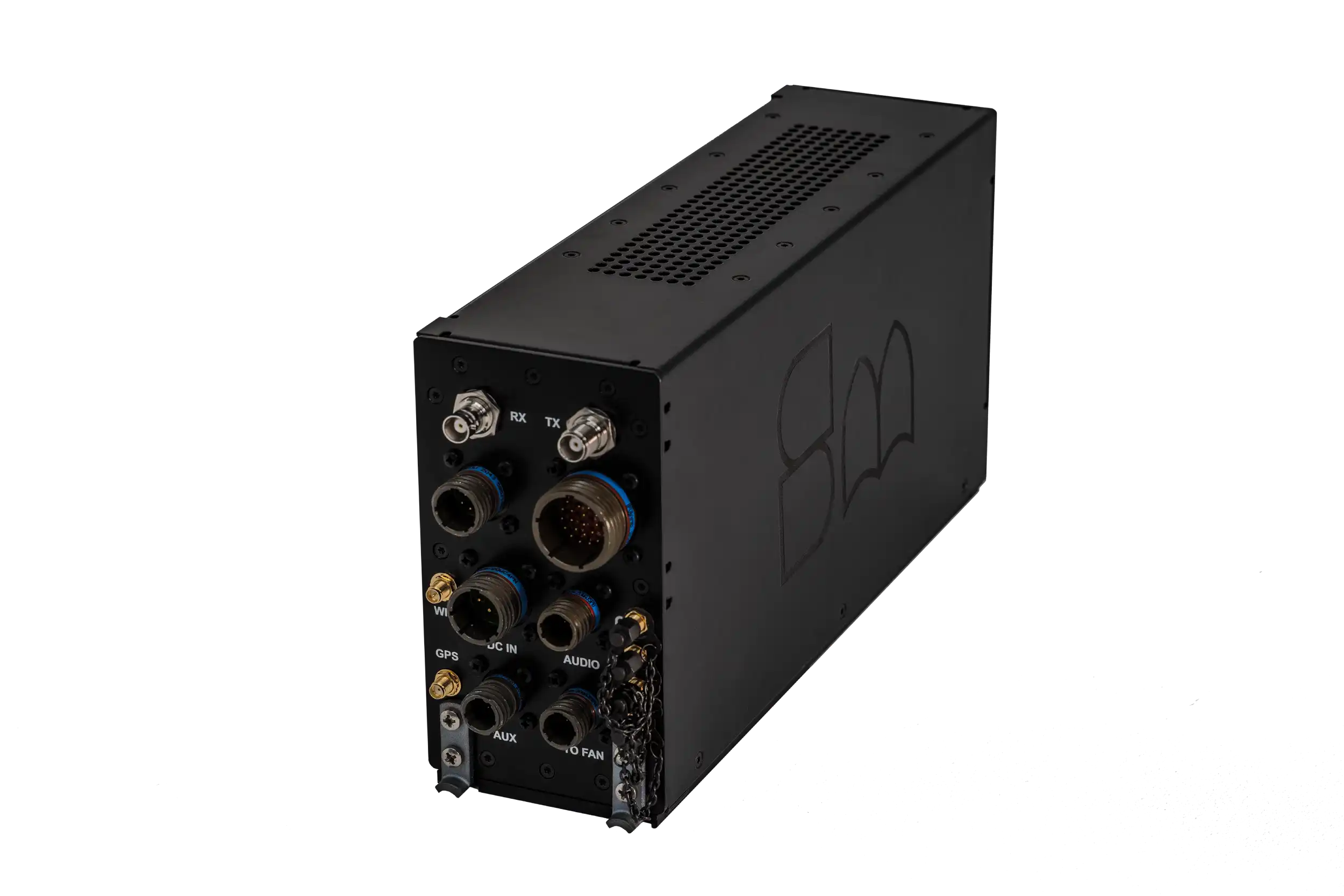

T-A
Full-Feature
Lightweight
2G – 3G – 4G – 5G
AIS – SARSAT – SARLOC
Smith Myers SDR
35km Max Range
12 Cellular Bands
353 x 90 x 165mm
4.2kg (9.25lbs)
Carry on/off Role Fit Option

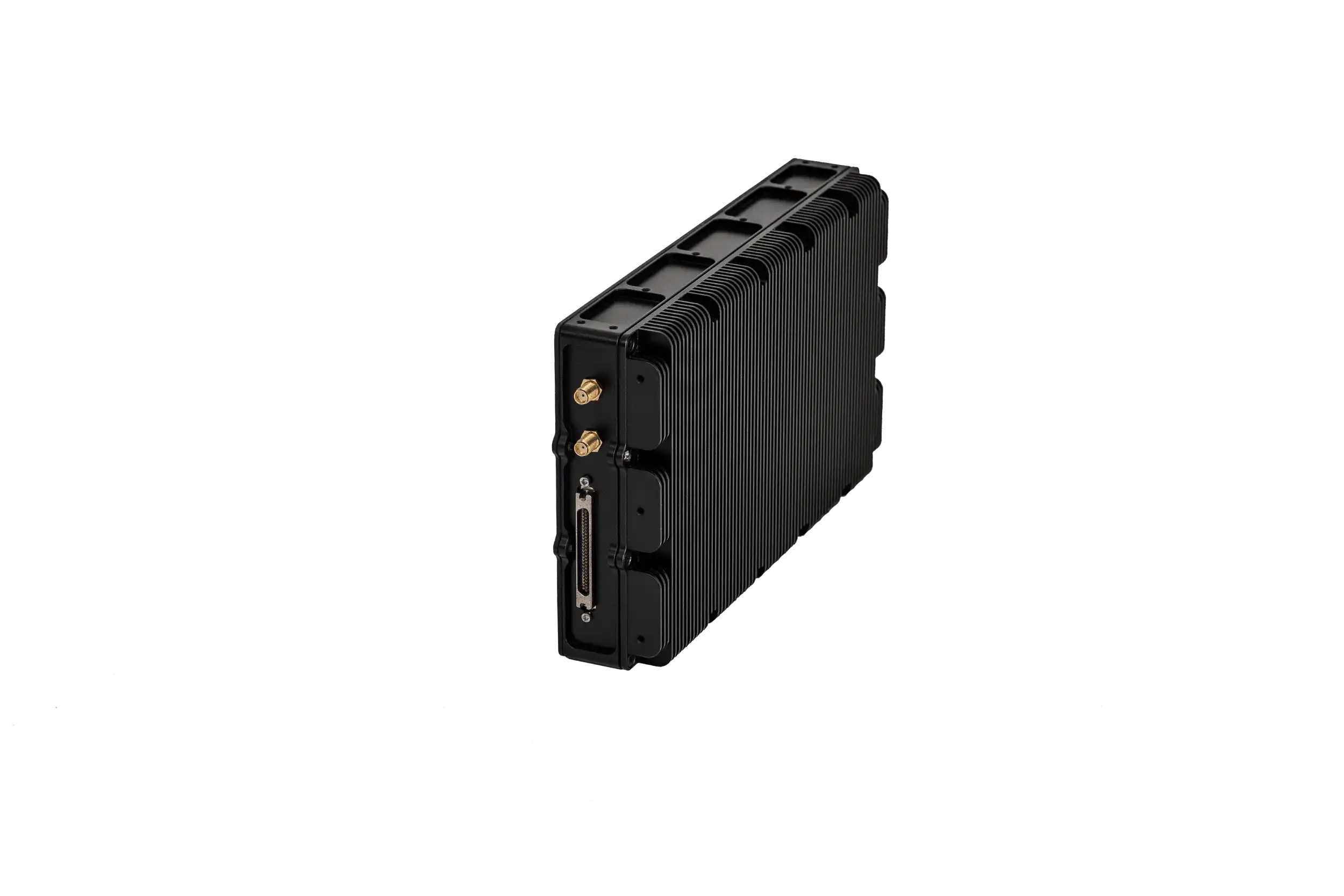

T-U
Lightweight
Powerhouse
2G – 3G – 4G – 5G
SARLOC
Smith Myers SDR
35km Max Range
12 Cellular Bands
226 x 133 x 41mm
1.4kg (3lbs)
Carry on/off Role Fit Option
UAS Pod Mounting Option

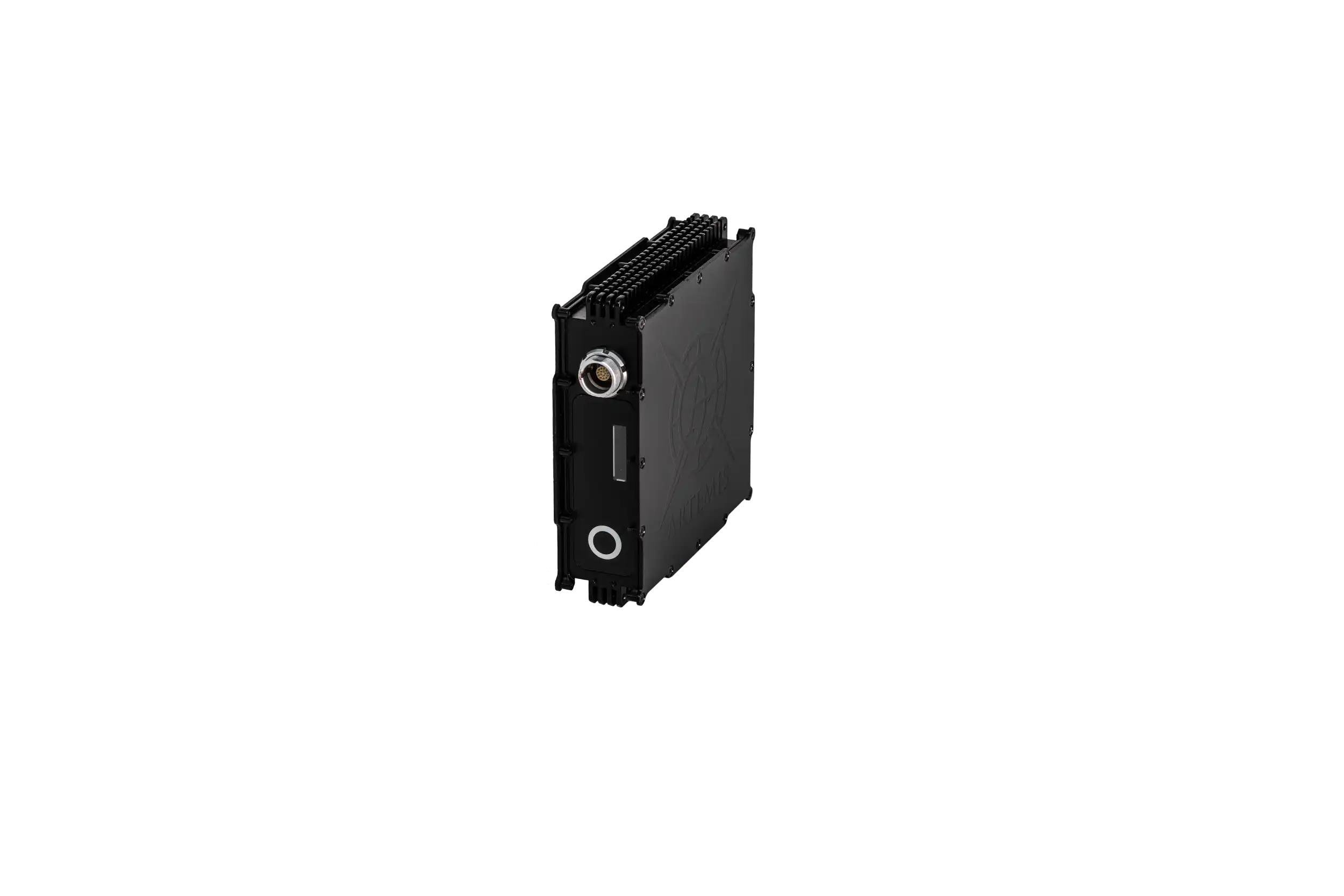

C-A
Lowest
SWaP
2G – 3G – 4G – 5G
SARLOC
Smith Myers SDR
5km Max Range
12 Cellular Bands
120 x 129 x 36mm
0.56kg (1.2lbs)
UAS Pod Mounting Option
Accurately and rapidly locate thousands of mobile telephones
ARTEMIS MPDLS has been designed to accurately locate mobile telephones in the challenging airborne environment using only two small antennas. ARTEMIS MPDLS can detect phones at unmatchable extended ranges and provide unique capabilities such as mass-mapping and geofencing to minimise crew workload.
The system is automated, quick and accurate. Leading to more rapid positive outcomes, even in low light/IMC conditions. Capable of full stand-alone operation, ARTEMIS does not require any Mobile Network Operator interaction.
ARTEMIS eschews traditional direction finding as it can be slow, inaccurate over long ranges and requires multiple antennas. Instead ARTEMIS provides two independent and proprietary geolocation techniques that are fast and highly accurate, using two small antennas.
ARTEMIS-Plus offers users enhanced capabilities for different operations such as Maritime Patrol, Border Protection and Law Enforcement.
Hardware Integration
Utilising single connectors for system power, communications and GPS makes integration simple.
Our Systems Integration & Support Team will work with you to make your integration experience quick, simple and economical.
Full ICD & Installation Manuals available on request.
Software Integration
Our standard API makes software integration a breeze.
Our Software Support Team will work with your software team to achieve integrated features such as automatically steering the EO/IR or overlaying ARTEMIS tracks on the main moving map.
Full API and Remote Simulator access available on request.
